Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- High-Performance OEM-Grade Replacement
- Custom-Engineered Optic Provides Extremely Wide, Intense Light Output
- Distinctive Integrated Amber Backlight
- Road-Legal Fog Light (SAE F3 Compliant)
- Plug-And-Play Main Beam, No Modification Needed
- Engineered And Assembled In USA
- White Output At 6000K Color Temperature
- Selective Yellow Output At 3000K Color Temperature
- Integrated Amber Accent Backlight With Wired Functionality
- Bolt-On Fitment With Glass-Fiber-Reinforced Brackets
- Built-In Adjustment For Aiming After Installation
- Includes Waterproof Plug-And-Play Adapters
- OEM-Grade Materials Including Aluminum Casting, UV-Coated Lens, Copper Circuit Boards
- Robotically Sealed With Urethane Epoxy For Moisture Protection
- Extensively Tested For Temperature, Vibration, Moisture, Corrosion
- Integrated Moisture-Proof Vents For Thermal Breathing
- Built-In Circuit Protection Against Voltage Spikes And Reverse Polarity
- Backed By An 8-Year Limited Warranty
- Raw Lumens: 1850 (White), 1650 (Yellow), 14 (Backlight)
- Intensity: 10200 Cd (White), 8700 Cd (Yellow)
- Beam Angle: 80 Degrees By 6 Degrees
- Power Consumption: 17W (White), 15W (Yellow), 0.3W (Backlight)
- Operating Voltage Range: 9 To 16V
- Current Draw: 1.3A (White), 1.2A (Yellow), 0.025A (Backlight)
- Polarity Specific Connector: Deutsch DT Input
- Passive Cooling With Pin-Fin Heatsink
- Compliance: SAE J575 Durability, SAE J583 Foglamp Beam Pattern
- Waterproof Rating: IP68
- Product Weight: 2.75 Lbs Per Pair
- Fits 2010-2013 Toyota 4Runner
| Brand | Diode Dynamics |
| Fog Light Output Type | LED |
Description
Elite OEM-Grade LED Fog Lights. The Diode Dynamics Elite Series LED Fog Lights deliver significantly enhanced visibility designed for OEM replacement. Engineered for high light output and a wide beam spread, these fog lamps improve driving safety and aesthetics in adverse weather conditions. Their plug-and-play design provides a straightforward upgrade to standard halogen fog lights, creating a brighter road presence.
Construction and Appearance. Constructed with precision aluminum alloy casings, these fog lights feature copper-core circuit boards and UV-coated polycarbonate lenses for durability and optical clarity. The robust build is complemented by a urethane epoxy seal and multi-die automotive LEDs, ensuring long-lasting performance and a premium appearance with integrated amber backlighting.
Installation. Installation requires no modifications and involves a straightforward bolt-on process using the included glass-fiber-reinforced brackets and waterproof connectors. A basic toolset and approximately 30 to 60 minutes are sufficient to complete the fitting and aiming procedures.
Warranty. This product is backed by an 8-year limited warranty, covering manufacturing defects and ensuring long-term reliability.
Application. Designed specifically to fit Toyota 4Runner models from 2010 to 2013 without additional adaptation.
Diode Dynamics DD5140P
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

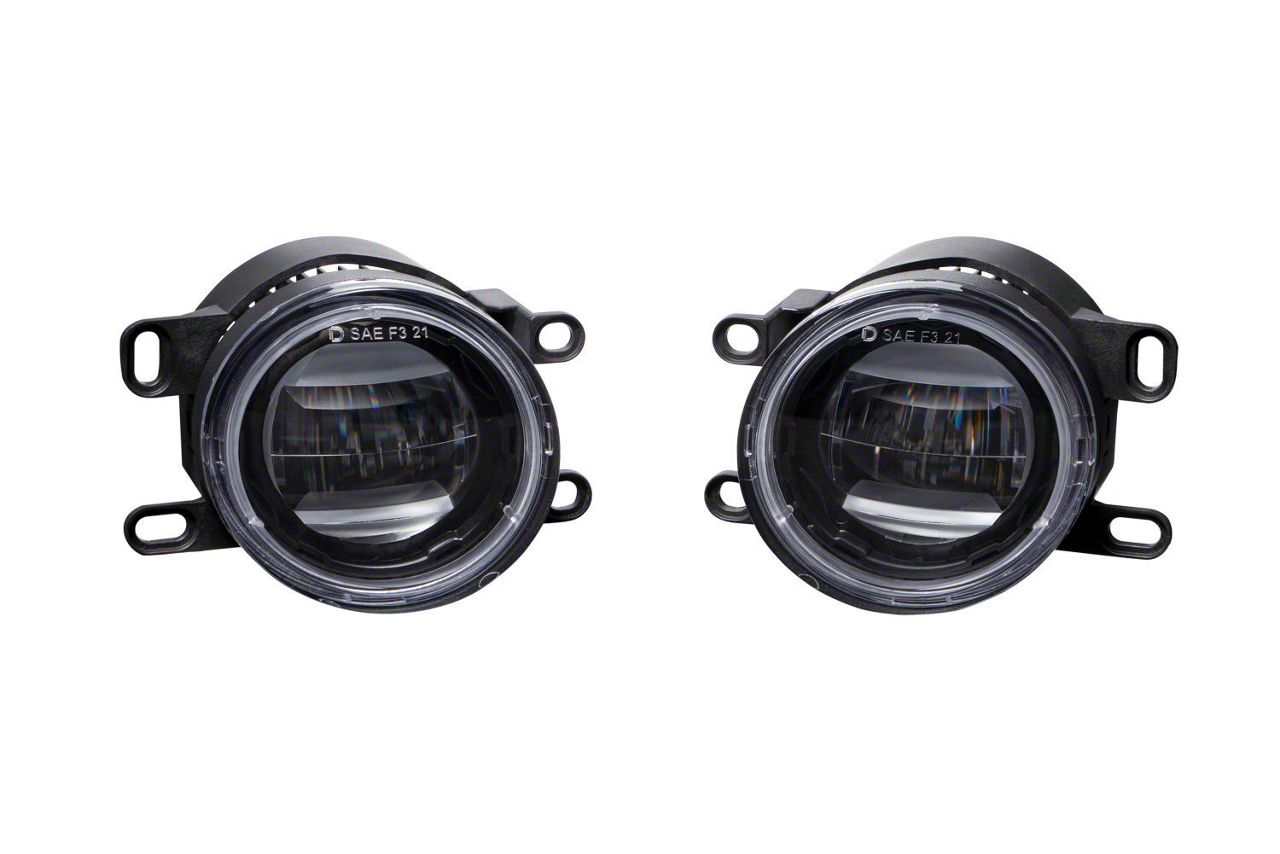

- (2) LED Fog Lights
