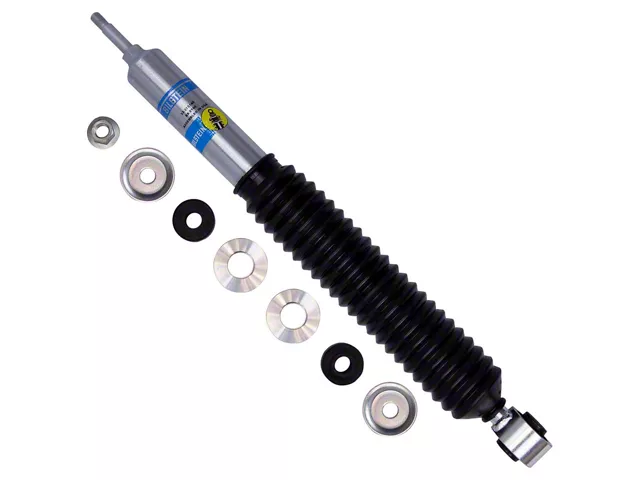

Bilstein B8 5100 Series Rear Shock for 0.50 to 2.50-Inch Lift (03-24 4Runner w/o X-REAS System)
Find parts that fit my vehicle Item TR11972
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
-
Bilstein 0.70 to 3.50-Inch B8 6112 Front Suspension Leveling Kit (10-24 4Runner)
$973.50
-
Bilstein B8 5100 Series Front Shock for 0 to 2.50-Inch Lift (10-24 4Runner w/o X-REAS System)
346
$168.00
-
Bilstein B8 5100 Series Front Shock for 0 to 2.50-Inch Lift (03-09 4Runner w/o X-REAS System)
346
$168.00
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Shock Absorber
- Series B8 5100
- Position Rear
- Notes Fits Vehicles With 0-2" Rear Lift
- Weight Lbs 5.90
- Collapsed Length In 14.91
- Extended Length In 23.03
- Collapsed Length Mm 378.8
- Extended Length Mm 585.0
- Stroke/Travel Length In 8.12
- Lower Mount Type Eye 19.3mm
- Upper Mount Type Stem
- Internal Design Monotube
- Finish Zinc Plated
- Reservoir No
- Body Design Smooth Body (Non-coilover)
- Body Diameter Od 2.0 In.
- Piston Diameter 46mm
- Boot Included Black Bellows
- Replacement Mounting Kit B4-KT1-Z441A00
- Spring Seat Included No
- Shaft Diameter 14mm
- Adjustable Damping Non-Adjustable
- Country Of Origin US
- Quantity Per Vehicle 1
- Warranty Limited Lifetime Warranty
- Fits 03-24 4Runner without X-REAS System
| Brand | Bilstein |
| Shock Lift Height | 0 to 2.50-Inch Lift |
| Shock Type | Non-Adjustable |
Description
Performance Suspension Solution. The Bilstein B8 5100 Series Rear Shock for 0.50 to 2.50-Inch Lift is engineered to deliver enhanced ride quality and handling for trucks and SUVs with a rear lift up to 2 inches. This shock absorber provides consistent damping performance and responds dynamically to changing road conditions, improving overall driving comfort and stability.
Construction and Appearance. Built with a durable monotube design, this shock features a zinc-plated finish for corrosion resistance and a smooth body design that does not accommodate coilovers. It includes a black bellows boot and uses high-quality materials such as a 46mm piston and 14mm shaft diameter for reliable operation.
Installation. Designed as a direct fit replacement, installation requires no drilling or special modifications and fits seamlessly with existing suspension setups using eye and stem mounting points.
Warranty and Application. This product includes a limited lifetime warranty for long-term durability and performance. It specifically fits the 2003 to 2024 Toyota 4Runner models without the X-REAS suspension system and accommodates vehicles with rear lifts from zero to two inches.
Application. Specifically fits the 2003 to 2024 Toyota 4Runner without the X-REAS suspension system, accommodating vehicles with rear lifts from zero to two inches.
Bilstein 33-313146
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Rear Shock for 0.50 to 2.50-Inch Lift
