2010-2024
2003-2009
Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Auxiliary Lighting for your 4Runner

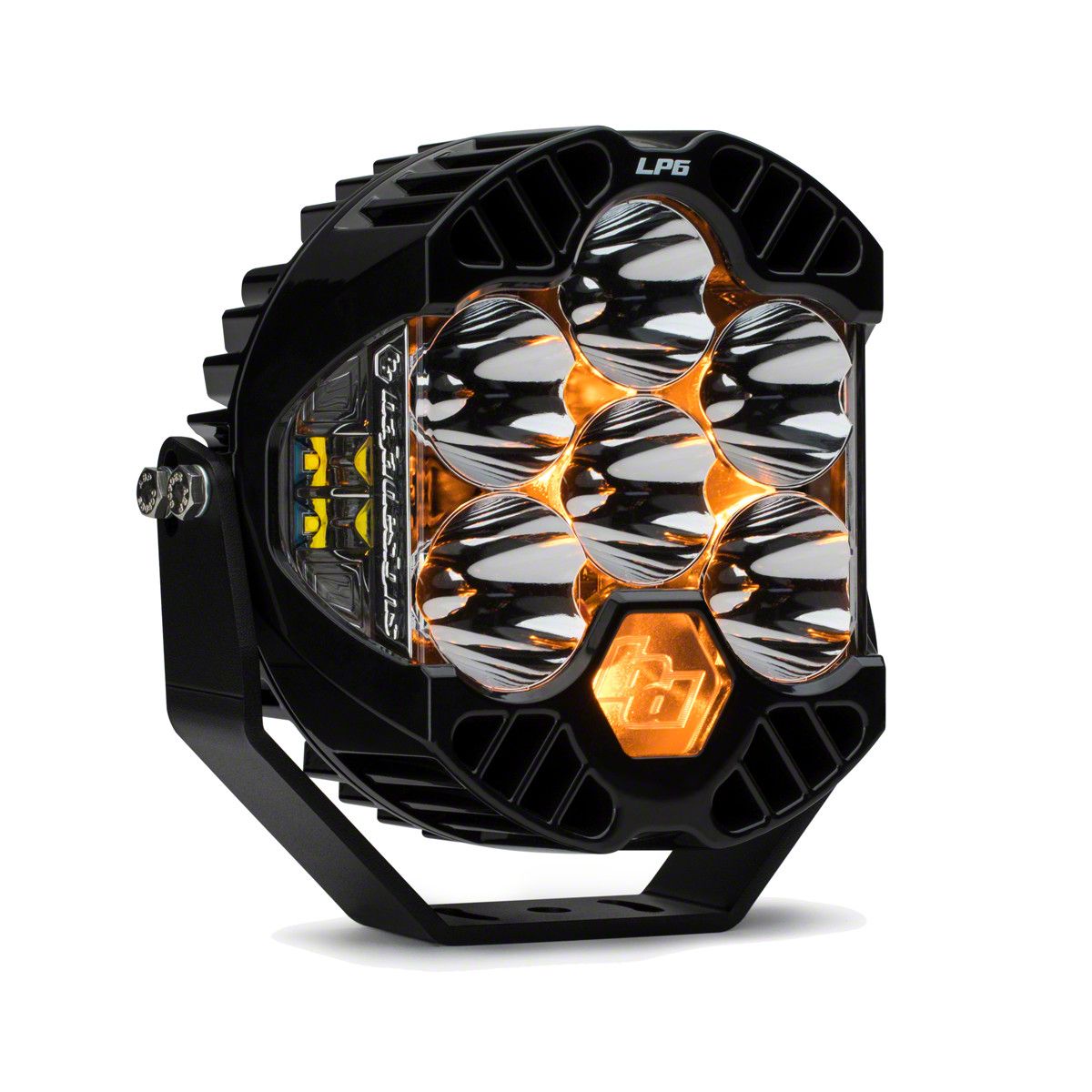

Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)
Item TR28848
Our Price
$534.95 each
Military, Medical & First Responders
$26.75 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Amber _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 6 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP6 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 A _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 W _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Wattage 103.500 W _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 7.500 A _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.300 A _x000D_
- Backlight Wattage 4.140 W _x000D_
- Beam Pattern Driving/Combo _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 11225 Lumens _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards/Compliance Water Resistance IP69K (Waterproof up to 9ft & Pressure Washable) _x000D_
- Standards/Compliance Durability Exceeds MIL-STD810G (Mil-Spec Testing) _x000D_
- Standards/Compliance Impact Resistance IK10 Compliant (Mechanical Impact Testing) _x000D_
- Depth 3.200 Inches _x000D_
- Height 6.500 Inches _x000D_
- Length 6.500 Inches _x000D_
- Weight 4.200 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Round |
| Light Size | 6 to 7.75 Inch |
Description
High-Performance Lighting. The Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber is a powerful lighting solution designed to deliver superior illumination for off-road and low-light driving conditions. It provides a versatile driving/combo beam pattern that enhances both close and distant visibility, making it essential for trail use and night driving.
_x000D_Construction and Appearance. This light pod features a durable powder coat cast aluminum housing in black, combined with a hardcoated polycarbonate amber lens to withstand harsh environments and impacts. The integrated design combines advanced LED technology with a high-quality powder coat finish for both strength and an attractive appearance.
_x000D_Installation. Installation is straightforward with included stainless steel mounting hardware and does not typically require drilling, making setup convenient for most users.
_x000D_Warranty. The product is backed by a limited lifetime warranty, providing long-term purchase protection.
_x000D_Application. This auxiliary light pod is designed for universal use and may require some adaptation depending on the vehicle and mounting location.
Baja Designs 270013
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Light and bracket
- (1) 1/4”-20 hardware (two longer bolts for lower mounting bracket)
- (1) 3/8” hardware (center bolt for lower mounting bracket)
- (1) Associated washers for mounting hardware
- (6) Bolts for lens (LP9) or (4) bolts for lens (LP6 & LP4)
- (1) O-ring
- (1) Three position toggle switch (on/off/on) DPDT
- (1) Deustsch Connector (DT06-4S) mating connector
- (1) LP Series Wiring Harness (PN: 64-0172, includes switch, relay, connectors, wiring)
- (1) Relay (PN: 4RD 933 332-18)
