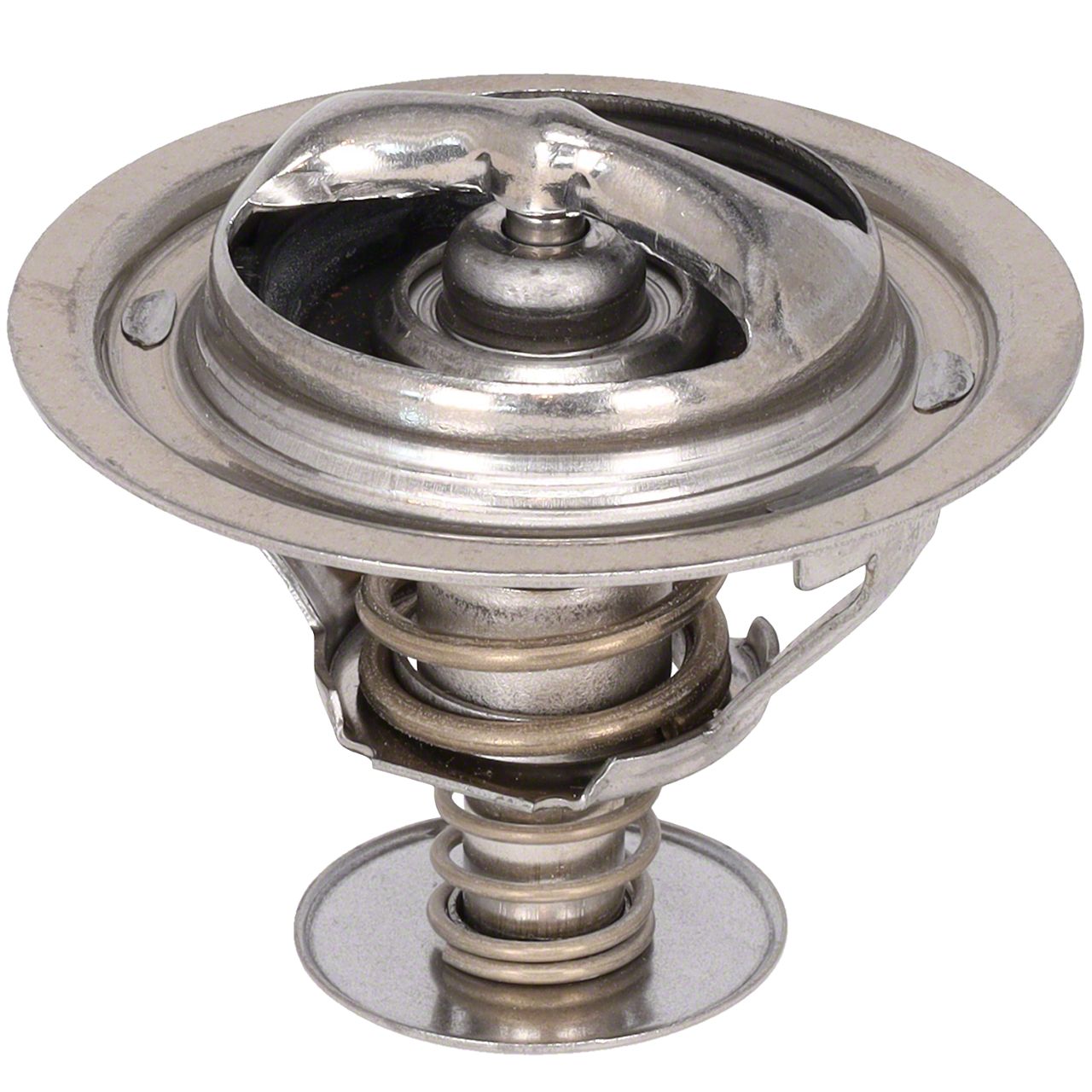

UltraStat Thermostat; 170-Degree (03-09 4.7L 4Runner)Find parts that fit my vehicle
Item TR43970
Our Price
$18.99
Military, Medical & First Responders
$0.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- Heavy Gauge Stainless Steel Components Offer Increased Reliability And Long-Lasting Durability _x000D_
- Exclusive BLVT™ Valve Technology Minimizes Thermal Shock To Cooling System Components _x000D_
- Stainless Steel Thermal Element For Unmatched Corrosion Resistance And Revolutionary REAX™ Wax Mixture Provides Quicker Reaction Time _x000D_
- AccuSpring™ Design For Stable Temperature Control And Increased Cabin Comfort _x000D_
- Outlet Inside Diameter 1.48 IN _x000D_
- Outlet Outside Diameter 1.72 IN _x000D_
- Valve Outside Diameter 1.61 IN _x000D_
- Engine Coolant Thermostat Quantity 1 _x000D_
- Bypass Flange Diameter 1.18 IN _x000D_
- Bypass Flange Diameter 29.97 MM _x000D_
- Includes Jiggle Pin Check Valve Yes _x000D_
- Jiggle Pin Weep Hole Yes _x000D_
- Gasket Or Seal Required Yes _x000D_
- Seal Quantity 0 _x000D_
- Height Between Flanges 1.61 IN _x000D_
- Height Between Flanges 40.89 MM _x000D_
- Type UltraStat _x000D_
- Height 2.30 IN _x000D_
- Height 58.42 MM _x000D_
- Electric No _x000D_
- Start To Open Temperature 170.0 Deg. F _x000D_
- Start To Open Temperature 76.67 Deg. C _x000D_
- Material Stainless Steel _x000D_
- Installation Tool Included No _x000D_
- Design OEM _x000D_
- Grade Type OEM _x000D_
- Gasket Or Seal Pre-Installed No _x000D_
- MAP Controlled No _x000D_
- Sealing Flange Outside Diameter 2.51 IN _x000D_
- Sealing Flange Outside Diameter 63.75 MM _x000D_
- Bypass Flange Length 1.66 IN _x000D_
- Bypass Flange Length 42.16 MM _x000D_
- Gasket Or Seal Included No _x000D_
- Jiggle Pin Check Valve Quantity 1 _x000D_
- Flange Thickness 0.05 IN _x000D_
- Flange Thickness 1.27 MM _x000D_
- Flange Height 0.05 IN _x000D_
- Flange Height 1.27 MM _x000D_
- Gasket Quantity 0 _x000D_
- Depth 1.55 IN _x000D_
- Depth 39.37 MM _x000D_
- Bolt Hole Quantity 0 _x000D_
- Fits 03-09 4.7L 4Runner _x000D_
Description
Superior Thermal Control. The UltraStat Thermostat, rated to open at 170 degrees Fahrenheit, efficiently regulates engine temperature by controlling coolant flow to the radiator. This essential function ensures the engine reaches and maintains optimal operating temperatures, preventing overheating and improving fuel efficiency and emissions control.
_x000D__x000D_Construction and Appearance. Constructed from heavy gauge stainless steel, this thermostat offers exceptional durability and corrosion resistance. It features a stainless steel thermal element combined with a proprietary REAX™ wax mixture for faster response times. Finished in a sleek silver tone, it is designed to OEM specifications for reliable performance.
_x000D__x000D_Installation. Installation is straightforward with no drilling required, suitable for professional mechanics and experienced enthusiasts. The product includes a jiggle pin check valve to ensure proper coolant flow during installation.
_x000D__x000D_Application. Designed specifically to fit the 03-09 4.7L 4Runner, ensuring precise fitment and compatibility without modifications.
