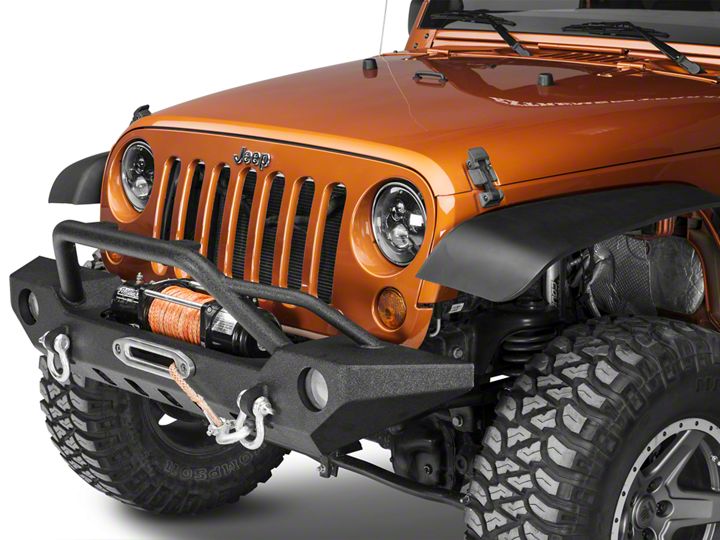

How to Install Barricade Adventure HD Front Bumper on your 07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL
Tools Required
- Flathead Screwdriver
- Phillips Screwdriver
- 13,15,17,18,19mm Sockets
- 13, 15, 17, 18 19mm Wrench
Shop Parts in this Guide
STEP 1 //
Remove the 6 pins holding the splash guard onto the vehicle
STEP 2 //
Next, unplug the factory fog lights and loosen the (8) 19mm nuts holding the front bumper to the support beam of the vehicle.
STEP 3 //
Remove the 2 push pins holding the top cover onto the vehicle
STEP 4 //
To remove the fog lights, loosen the 4 phillips screws on each light.
STEP 5 //
Insert the supplied plastic screw retainers.
STEP 6 //
Using the supplied screws, secure the fog light housing to the bumper.
STEP 7 //
Slide bumper into place, and secure using the supplied hardware.
STEP 8 //
In most cases, the fog light harness will need to be extended. Cut and splice the wires to the appropriate length.
STEP 9 //
Install supplied D-rings.
