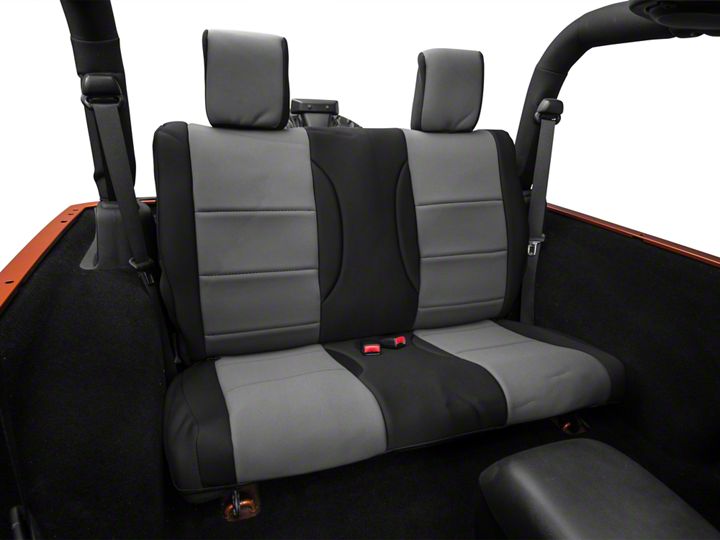

How to Install Rugged Ridge Rear Seat Cover - Black/Gray on your 07-18 Jeep Wrangler JK 2 Door; 2018 Jeep Wrangler JL 2 Door

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

Parts included:

(1) Rear top cover
(1) Rear bottom cover
(2) Head Rest Covers

NOTE: Please read instructions before installing

Instructions:

Step (1) Remove rear headrest from seat. The headrest can be removed by pressing the two buttons located on the top of the seat.


Step (2) Slip upper seat cover over rear seat. Note location of headrest mounting holes. Slip lower Velcro strip between the upper and lower portions of the seat and secure. Connect zipper and close.


Step (3) Push seat cover over headrest mounting plates. Secure under plastic caps as shown.


Step (4) Adjust upper seat cover as
needed for proper fitment.

Step (5) Slip lower cover over seat bottom and slide back clips and straps through the gap between the top section and the lower seat section. Fold and touble the seat so that front to rear straps can be secured.

Step (6) With seat folded forward loosen staps and attach front strap to back clip. Repeat for all three locations.


Step (7) With straps attached carefully pull straps to thighten.

Step (8) Slide side clips between the seat and the fenderwell and secure. Fold seat back down and check fitment of cover noting carseat attachment slots. Adjust as needed.

Step (9) Slide supplied headrest covers over headrest and secure velcro. Adjust fitment as needed.

Step (10) Insert headrest back onto rear seat.


Step (11) Inspect seat cover and adjust as needed. You may need to fold and tumble the seat several times and adjust to get the final fitment.
