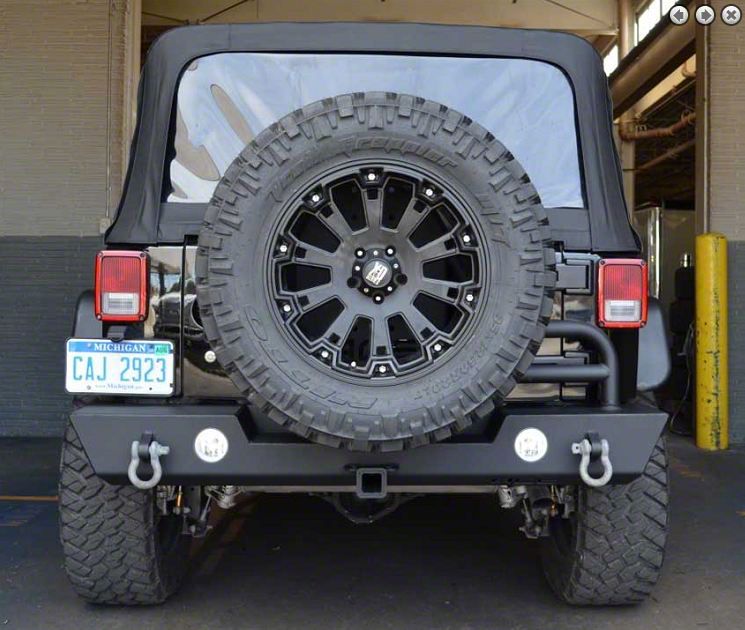

Watch your back! With a heavy-duty JK Rear Bumper and Tire Carrier from ACE, you'll have the ultimate protection for the rear of your Jeep, plus a rock-solid carrier for your oversize spare that allows for single-handed gate operation.
Bumper
This low-profile mid-width bumper is made of thick steel plate and extends just past the rear panels to keep your Jeep defended when you're coming off rocks. Plus it mounts inside the factory frame for maximum clearance, in fact it actually gains some clearance from the stock receiver.
Tire Carrier
The Tire Carrier consists of a spindle housing that's welded and supported from the top and bottom plate of the bumper. There's a zerk fitting provision in the housing that utilizes our cnc machined, oil impregnated bronze bearings.
The spindle is cnc machined from solid stock and welded to a beefy 2" diameter x .134 wall tubing that has our 1/4 laser cut tire mounting plate. The mounting plate has multiple mounting locations for an adjusted height relative to your tire size. Plus, the mounting holes are ideal for a hi-lift jack.
The kit also includes a tire mount stanchion used to mount your tire to the carrier and a rear gate mounting plate that couples the tire carrier to the gate via stainless steel heim joints.
The carrier rated for up to a 38" tire, and is conveniently designed for effortless single-handed operation.
Finish and Options
The ACE Rear Bumper with Tire Carrier is finished with black textured powder coat and comes with stainless steel mounting hardware and D-ring mounts built in. With the receiver option, it retains the factory tow ratings of 2,000 lbs. for a 2-door and 3,500 lbs. on a 4-door JK.
Installation
By using existing mounting holes, we make the installation process as easy as possible, but don't think we've skimped on rigidity. Our mount actually extends 10" inside the frame rail, making the attachment much stronger than a stock bumper, or nearly any bumper on the market.
Remove your factory bumper and receiver, bolt on your new ACE JK Rear Bumper with Tire Carrier, and hit the trails with confidence knowing you're covered with our Lifetime Warranty.
Allow 6-8 weeks for shipping, depending on demand.
All products sold by ACE Engineering, LLC are sold for off road use only. Any other use or application is the responsibility of the purchaser and/or user.
- 1/4" steel plate
- Stainless steel mounting hardware
- Primed and black texture powder-coated
- Lifetime warranty
- 190 lbs.
- Carrier rated for up to 38' tire
- Effortless single-handed operation
- Mounting holes ideal for hi-lift jack
- Retains factory tow ratings: 2,000 lbs. for 2-door, 3,500 lbs. for 4-door JK
- Allow 6-8 weeks minimum for shipping, depending on demand.
Manufacturer Part Number (MPN):
- ACE Engineering ACEJKRBTCNO
